Conveyor Rotate Unit
Pallet & Product Rotation
Allows for rotation of conveyors in order for pallets and product to navigate corner/end transfers.
- Custom designed for any rotation angle/travel distance
- Conveyor Rotate Unit is servo driven to allow for smooth, precise movement
- Allows product to be transferred to an adjacent conveyor while maintaining leading edge of pallet
- Useful when pallet size and/or weight exceed limitations of Glide-Line curve modules
Videos
Options
- Rotate about center axis or offset axis
- Servo rotation range 0-360°
Lift & Rotate Unit
Lift & Bypass Capabilities
The Pneumatic Lift Rotate unit is designed to turn pallets 90° or 180° in a clockwise or counterclockwise direction. The unit uses pneumatics (lift portion) and servo motors (rotating portion) for ultra-smooth rotational motion and acceleration. Servo motors are customizable for special applications that demand continuous rotational motion, such as winding operations or visual inspection requiring multiple view angles. It can also act as a lift-and-bypass unit, lifting pallets and placing them on a shelf so other pallets can pass through.
Specifications
- Bi-directional operation
- Payload capacity – 150 Lbs. @ 80 psi
- Pallet length range – 160mm – 1040mm in 1mm increments
- Pallet width range – 160mm – 1040mm in 1mm increments
- 40mm bore lift cylinder
- Lift Stroke of 1.5-40mm
- ¼ NPT ports
Features
- Pneumatic lift
- Servo driven rotation
- Integrated shock absorbers for lift motion
Options
- Guard package
- High tolerance locating pins available

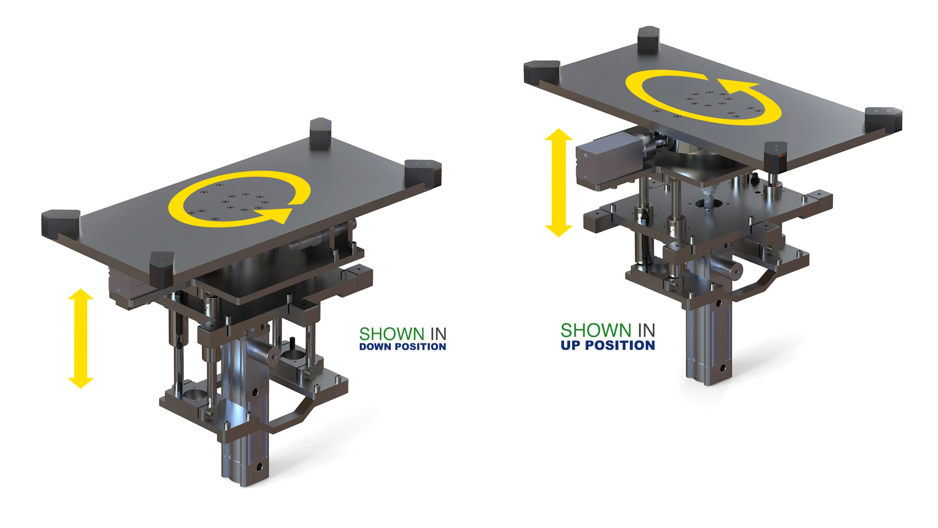

Manual Lift & Rotate Unit
Rotate Product Without Controls
Allows for vertical lifting of pallet and rotation of 90 degrees.
- Rotation lock to secure pallet in position at end of rotation cycle
- Robust Lift and Rotate Unit that allows for product to be lifted off conveyor, and rotated 90 degrees
- Provides operator improved access to product
- Manual rotation allows for operator to rotate product without controls
Videos
Features
- Dual acting air cylinder with clamping device to secure device in case of loss of air pressure
- Robust slewing bearing for rotation ensures smooth and easy operation
Options
- Can be designed for various rotation angles or freely spinning.
Downloads

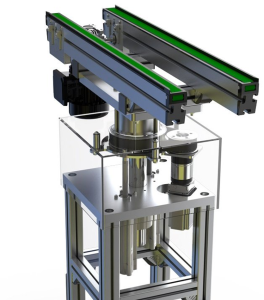

DART Drop & Rotate Transfer Unit
Compact 360 Degree Rotation
DART Drop and Rotate Transfer Unit is a revolutionary innovation for pallet and work piece handling designed to simplify layouts and reduce cost. This specialized hub has been specifically design to maximize layouts and save complexity and cost. The DART system is a powered conveyor that can rotate from 1 degree to 360 degrees to accomplish almost any angle transfer in a system, including conventional right angle transfers. The pallet can either rotate with it (changing orientation) or stay static (maintaining orientation). With this new design in your overall layout design toolbox, Glide-Line’s DART will allow for endless opportunities and maximize assembly workspace.
All stops can be configured to be pneumatically single or double acting, to stop work-piece pallets so an operation can be performed. Dampened Stops offer a pneumatic cushioning force to the work piece that slows the impact of the pallet against the stop. The cushioning force can be adjusted to suit specific application needs. Larger stops and higher cushioning forces are available upon request.
Anti-Rebound pallet stops can be utilized as a unidirectional stop gate to prevent pallets from moving if the conveyor belt reverses direction in the application.
Drop-Away pallet stops are designed to work at an LTU (Lift and Transfer Unit) intersection where pallets are required to traverse in multiple directions.
Specifications
- Used as a centralized hub, DART can help solve complex pallet and work piece distribution challenges
- Is capable of operating with more than two stands of conveyor, ideal for handling heavier pallets and large panels
- Develop higher level automated systems at a lower relative cost
- DART utilizes many of our standard conveyor and device parts
Features
- Servo driven rotation for smooth rapid and precise positioning
- The device does not violate the space between the conveyor strands so all of the standard conveyor mounted stops and accessories can be used
- Static center plate available to maintain work piece orientation when making right angle transfers
- Smooth pneumatic vertical motion with integrated adjustable air cushions
Options
- By managing complex traffic control conditions, DART makes it possible to minimize the size of your overall system
- Simplifies pallet handling by utilizing standard conveyor mounted pallet stops and accessories
- More cost effective than using typical lift transfers units
- Use the DART to rotate and transfer in a single station
- Much less complicated than alternative systems
Downloads
Conveyor Rotate Unit
Pallet & Product Rotation
Allows for rotation of conveyors in order for pallets and product to navigate corner/end transfers.
- Custom designed for any rotation angle/travel distance
- Conveyor Rotate Unit is servo driven to allow for smooth, precise movement
- Allows product to be transferred to an adjacent conveyor while maintaining leading edge of pallet
- Useful when pallet size and/or weight exceed limitations of Glide-Line curve modules
Options
- Rotate about center axis or offset axis
- Servo rotation range 0-360°
Lift & Rotate Unit
Lift & Bypass Capabilities
The Pneumatic Lift Rotate unit is designed to turn pallets 90° or 180° in a clockwise or counterclockwise direction. The unit uses pneumatics (lift portion) and servo motors (rotating portion) for ultra-smooth rotational motion and acceleration. Servo motors are customizable for special applications that demand continuous rotational motion, such as winding operations or visual inspection requiring multiple view angles. It can also act as a lift-and-bypass unit, lifting pallets and placing them on a shelf so other pallets can pass through.
Specifications
- Bi-directional operation
- Payload capacity – 150 Lbs. @ 80 psi
- Pallet length range – 160mm – 1040mm in 1mm increments
- Pallet width range – 160mm – 1040mm in 1mm increments
- 40mm bore lift cylinder
- Lift Stroke of 1.5-40mm
- ¼ NPT ports
Features
- Pneumatic lift
- Servo driven rotation
- Integrated shock absorbers for lift motion
Options
- Guard package
- High tolerance locating pins available
Manual Lift & Rotate Unit
Rotate Product Without Controls
Allows for vertical lifting of pallet and rotation of 90 degrees.
- Rotation lock to secure pallet in position at end of rotation cycle
- Robust Lift and Rotate Unit that allows for product to be lifted off conveyor, and rotated 90 degrees
- Provides operator improved access to product
- Manual rotation allows for operator to rotate product without controls
Features
- Dual acting air cylinder with clamping device to secure device in case of loss of air pressure
- Robust slewing bearing for rotation ensures smooth and easy operation
Options
- Can be designed for various rotation angles or freely spinning.
Downloads
DART Drop & Rotate Transfer Unit
Compact 360 Degree Rotation
DART Drop and Rotate Transfer Unit is a revolutionary innovation for pallet and work piece handling designed to simplify layouts and reduce cost. This specialized hub has been specifically design to maximize layouts and save complexity and cost. The DART system is a powered conveyor that can rotate from 1 degree to 360 degrees to accomplish almost any angle transfer in a system, including conventional right angle transfers. The pallet can either rotate with it (changing orientation) or stay static (maintaining orientation). With this new design in your overall layout design toolbox, Glide-Line’s DART will allow for endless opportunities and maximize assembly workspace.
All stops can be configured to be pneumatically single or double acting, to stop work-piece pallets so an operation can be performed. Dampened Stops offer a pneumatic cushioning force to the work piece that slows the impact of the pallet against the stop. The cushioning force can be adjusted to suit specific application needs. Larger stops and higher cushioning forces are available upon request.
Anti-Rebound pallet stops can be utilized as a unidirectional stop gate to prevent pallets from moving if the conveyor belt reverses direction in the application.
Drop-Away pallet stops are designed to work at an LTU (Lift and Transfer Unit) intersection where pallets are required to traverse in multiple directions.
Specifications
- Used as a centralized hub, DART can help solve complex pallet and work piece distribution challenges
- Is capable of operating with more than two stands of conveyor, ideal for handling heavier pallets and large panels
- Develop higher level automated systems at a lower relative cost
- DART utilizes many of our standard conveyor and device parts
Features
- Servo driven rotation for smooth rapid and precise positioning
- The device does not violate the space between the conveyor strands so all of the standard conveyor mounted stops and accessories can be used
- Static center plate available to maintain work piece orientation when making right angle transfers
- Smooth pneumatic vertical motion with integrated adjustable air cushions
Options
- By managing complex traffic control conditions, DART makes it possible to minimize the size of your overall system
- Simplifies pallet handling by utilizing standard conveyor mounted pallet stops and accessories
- More cost effective than using typical lift transfers units
- Use the DART to rotate and transfer in a single station
- Much less complicated than alternative systems
