Pallet Transport Conveyor
Twin Strand Pallet Conveying

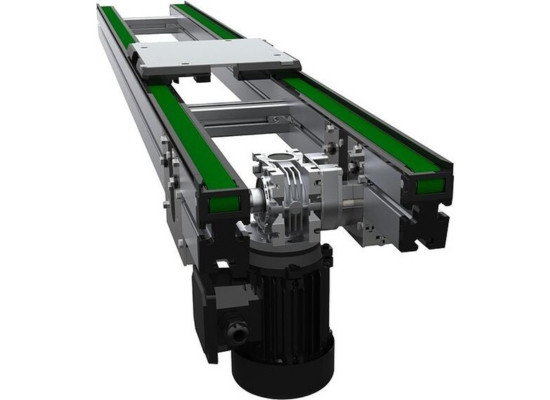

The Twin Strand Transport Conveyor is a material handling solution of two or more strands, transporting panel-like products or large, platform-type fixtures from workstation to workstation. With the addition of our Roller Lift Transfer Unit, transport conveyors can be connected in many ways to suit a variety of assembly system requirements.
Videos
Specifications
- Speed Range – 3.5 to 70 m/min based on a 1750 motor RPM
- Transport Payload Capacity – 250 Lbs. per strand
- Minimum Strand length – 174mm
- Belt Type – 25mm wide polyurethane core T5 timing belt with steel tension members
- Extruded aluminum construction with standard 10mm T-slots
Features
- T5 timing style conveyor belts for positive drive and precision positioning ability
- Several belt materials available to service a wide range of pallet handling conditions
- Utilizes all ball bearing supported rolling elements for long maintenance free operation
- Certified for use in clean room environments
- Antistatic materials available to suit operation in static sensitive areas or with static sensitive payloads
- All maintenance operations including belt changes can be performed from the top eliminating the need to disassemble or remove ancillary equipment
- Highly configurable
- Bolt-up compatibility with other leading brands
Options
- Configurable cross-members – Define the number and position of cross-members desired
- Configurable break points – Define break points in the frame for convenient assembly and breakdown
- Belt covering – All belt cores are polyurethane with steel tension members
- Green polyamide covering (Nylon Fabric)
- Black antistatic polyamide covering (Nylon fabric with antistatic additives)
- White uncovered – Used for non-accumulating and cleanroom applications
