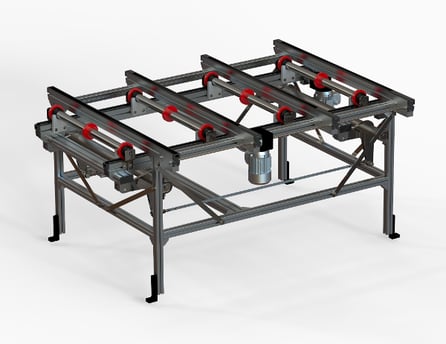

Roller Lift Transfer Unit

Roller Lift Transfer Units utilize a series of rollers to lift and engage the payload perpendicular to the direction of flow. The lifting action raises the payload from the in feed conveyor so it can be moved onto the adjacent transport conveyor. The unit is bi-directional and can be set up to manage two, three, and four-way traffic control conditions.

Features:

• Stand-alone module
• T5 timing style conveyor belts for positive drive
• Several belt materials available to service a wide range of pallet handling conditions
• Utilizes all ball bearing supported rolling elements for long maintenance free operation
• Certified for use in clean room environments
• Antistatic materials available to suit operation in static sensitive areas or with static sensitive payloads
• Highly configurable

Specifications:

• Stand-alone module
• Speed Range – 3.5 to 70 m/min
• Bi-directional operation
• Payload Capacity – 250 Lbs. per strand
• Belt Type – 25mm wide polyurethane core T5 timing belt with steel tension members

Options:

• Integrated static payload stops
• Integrated pneumatic actuated payload stops
